Avalon / Lopi Parts

Please read description of parts to mach year, model and serial # before ordering.

We are a AVALON DEALER and only stock parts that fit Avalon stoves. Some parts fit both Avalon and Lopi as noted on each part.
We CAN NOT order Lopi specific parts.



WE DO NOT SHIP COMPLETE WOOD STOVE BLOWER KITS ON THIS SITE.
Blower kits are only available to LOCAL PICK UP CUSTOMERS ONLY.

WE DO SHIP THE PARTS LISTED BELOW

Fan Parts    ( illustration )

Temp limit Snap Disk, FOR Woodstove Convection Blower, 5/8" diameter 250-00311
(old 98900354)

Snap Disk, Woodstove convection blower, 5/8" Diameter. For Insert or Freestanding blowers. Has 120 deg. "On" and 90 deg "Off" temps.
For the snap-disc mounted to the bracket with the wire harness order #98900355 listed below.
$12 [Order] THIS IS NOT THE BLOWER

Temp limit Snap-disc, Woodstove Fan W/ Bracket (Front or Rear Blowers) 98900355
Snap-disc on raised bracket for the universal rear wood stove blower or the Avalon front blowers. Includes two wires with connectors. To order just the snap-disc use #98900354 listed above.
$18 [Order] THIS IS NOT THE BLOWER

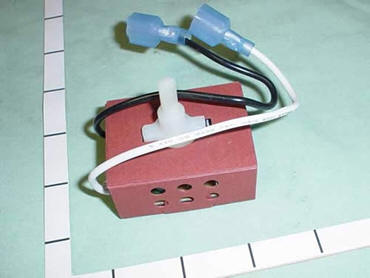

Fan Rheostat, Blower w/ Off Position, Gas & Wood - Thick 100-00123
Rheostat (with Off position), for convection blowers on gas appliances and woodstove blowers. Has male connectors on the two wires. Set at
approx. 65 Volts minimum (lowest speed). Does not include knob. Order knob #99300657 for knob.
$20 [Order] THIS IS NOT THE BLOWER



Door Parts

Cam, Avalon, Cast, Brass 250-00598 ( old 99900416)
Cam, door, brass casting, Avalon
$20 [Order]

Door Handle Assembly, Avalon 250-00818 (old 99900415
Door handle assembly, complete, with shaft, Wood handle (#99300600), cast cam (#99900417), washers, nut.
$30 [Order]

Handle, Avalon Wood, For Door 250-00594 (old 99300600
Handle, Avalon, wood, for Avalon wood, pellet & gas. Handle is held on with glue and friction.
$12 [Order]

Glass, Avalon, 700/900 Series Wood & Gas, Clear 99400301
Glass, clear, 17-3/32" W X 10-1/8" H. Radius top & bottom.
$110 [Order]

Glass, Avalon, 1196, 1190, Clear 99400302 Glass, clear 19" W X 10-1/8" H. Radius top & bottom.
$110 [Order]

 GASKET, GLASS 3/8" Round x 66" Travis 99900403 /
Description: 3/8" Round diameter door glass gasket rope. This white fiberglass rope is used to cushion the door glass on most Avalon doors. (NOT THE DOOR GASKET see below)
-- $10.00
[ Add to Cart]  [ View Cart]

Gasket 3/4" x1/8" Flat Self-adhesive Window Channel (white) AES301W (Sold Per foot) --
Can be used as a cushion between Glass Clip retainers and glass.
SOLD PER FOOT $0.99 [ Add to Cart]  [ View Cart]

Avalon DOOR ROPE GASKET,  7/8" x 64" BLACK / 99900406 --  7/8" x 64" BLACK
- VARIOUS WOOD/PEL/GAS  (NOT FOR ASTORIA or YANKEE)
 64" of 7/8" diameter door gasket rope. You may have some rope left over when finished. DO NOT STRETCH the rope when installing.
This kit supplies enough rope for one single or a pair of double doors on various gas, wood or pellet appliances.  (NOT FOR ASTORIA or YANKEE)
 (NOT FOR ASTORIA or YANKEE)
$19.00
[ Add to Cart]  [ View Cart]









Gasket Cement, 4 oz. Bottle -- $4.00
Used to cement Rope gasket into door channel.
[ Add to Cart]  [ View Cart]

Combustion chamber parts

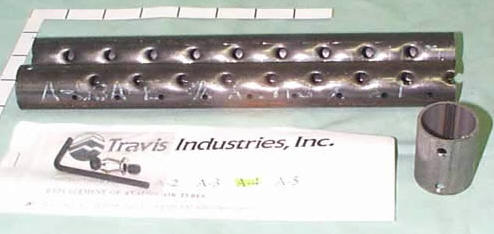

Air Tube A-4 98900203
Air tube kit A-4 796 Ser. No. 1002-7595
Includes 2 - 9-15/16" long secondary air tubes, 1 - 1-1/2" long retaining sleeve, 2 - 1/4" 1/4-20 SHSS, 1 1/8" hex key, 1 - 1/4" push plug and an instruction sheet.
$45
[ Add to Cart]  [ View Cart]

Air Tube A-7 98900206
Air tube kit A-7
796, Pendelton (745/790) Ser. No. 7596 & Up Includes 1 - 19-1/4" secondary airtube, 1 - 1" retaining sleeve, 2 - 1/4" push plugs (98900353) and an instruction sheet.
$45
[ Add to Cart]  [ View Cart]

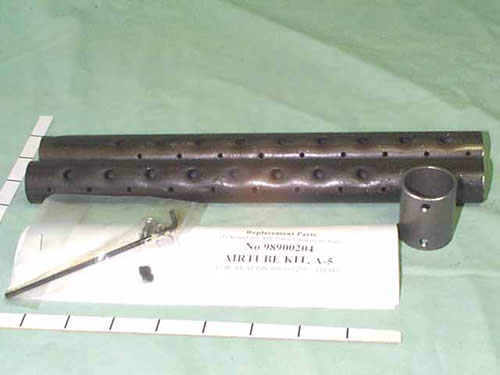

Air Tube A-5 98900204
Air tube kit A-5 996 Ser. No. 1200-11696
Includes 2 - 10-15/16" long secondary air tubes, 1 - 1-1/2" long retaining sleeve, 2 - 1/4" 1/4-20 SHSS, 1 1/8" hex key, 1 - 1/4" push plug and an instruction sheet.
$45
[ Add to Cart]  [ View Cart]

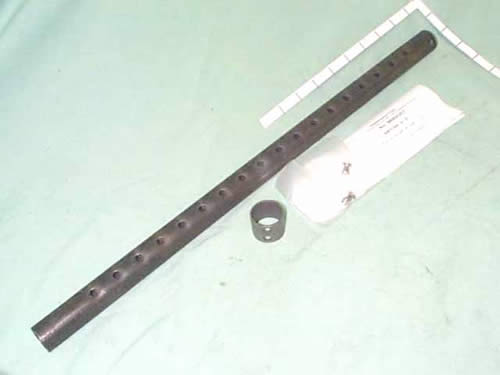

Air Tube A-8 98900207
Air tube kit A-8
996 Ser. No. 11696-31873 Includes 1 - 21-1/4" secondary airtube, 1 - 1" retaining sleeve, 2 - 1/4" push plugs (98900353) and an instruction sheet.
$45
[ Add to Cart]  [ View Cart]

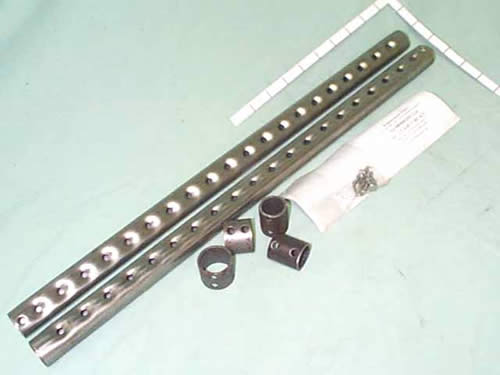

Air Tube A-6/L-5 98900205
Air tube kit A-6 & L-5
1196 Ser. No. 1002-4098 520-96 Ser. No. 1002-3892
$45
[ Add to Cart]  [ View Cart]

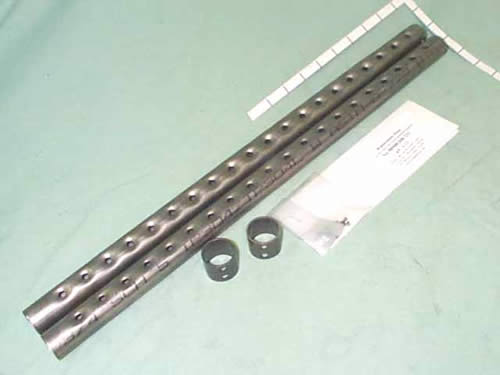

Air Tube A-9/L-12 98900208
Air tube kit A-9 & L-12
1196 Ser. No. 4099-7380 520-96 Ser. No. 3893-7899
$45
[ Add to Cart]  [ View Cart]

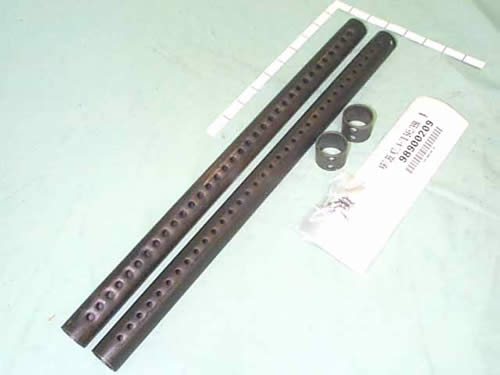

Air Tube A-10 98900209
Air tube kit A-10
Rainier (945/990) Ser. No. 1000 & UP Includes 1 - front 18-1/4" long secondary airtube, 1 - rear 18-1/4" long secondary airtube, 2 - 1" retaining sleeves, 4 - 1/4" push plugs
$45 [ Add to Cart]

 AIRTUBE KIT, A-11/L-16 1190 #98900210
Air tube kit A-11 & L-16
Olympic (1190) Ser. No. 8001 & Up Liberty Ser. No. 8503 & Up
$90.00
[ Add to Cart]  [ View Cart]

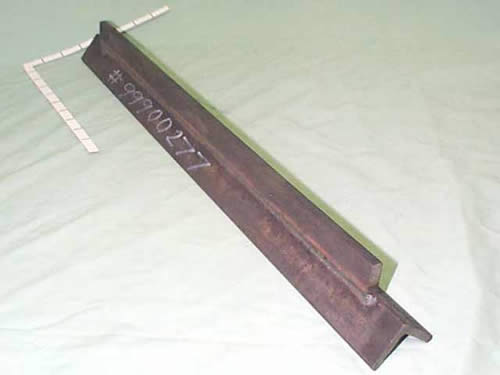

Baffle Support, Front, Olympic (1190), Liberty, Freedom, Freedom Bay 99900277
Baffle support front "Y" bar - 23-5/8"" long 1-1/2" x 1-1/2" x 1/4" angle with 21-1/8" long 1" x 3/8" deflector bar (welded to heel of angle at 135 degrees)
$22.00 [ Add to Cart]  [ View Cart]


 Baffle support rear "T" bar OLYMPIC Ser# 8000   -   Current  99900278
 - 23-5/8"" long 1-1/2" x 1-1/2" x 1/4" angle with 23-5/8" long 1" x 1/4" deflector bar and 7" long 1" x 1/4" spacer bar (welded to top of angle at 90 degrees).
$22
[ Add to Cart]  [ View Cart]

Baffle Support, Front, 1196, Flush Bay, 520-96 98900302
Baffle Support, Front, (22" long angle with 19-1/2" long deflector bar) For 1196 Ser. # 1002-7380, 1990 520-96 Ser. # 1002-7899, 1992 Flush Bay Ser. #50200-51699.
$36
[ Add to Cart]  [ View Cart]

Baffle Support, Rear T-Bar, 1196, 520-96, Flush Bay 98900303
Baffle Support, Rear (22" Long T-bar) For 1196 Ser. # 1002-7380, 1990 520-96 Ser. # 1002-7899, 1992 Flush Bay Ser. #50200-51699.
$22  [ Add to Cart]  [ View Cart]



Baffle Support, Front, Rainier (945/990), Cottage, Mission 98900308
Front baffle angle with deflector.
$36 [ Add to Cart]  [ View Cart]

Baffle Support, Front, 996 98900300
Front baffle angle with deflector
$36 [ Add to Cart]  [ View Cart]

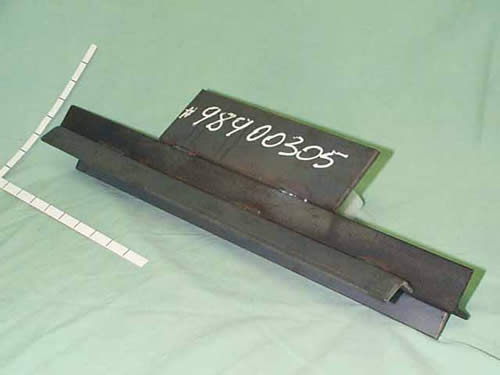

Baffle Support, Front, Pendelton (745/790), 796 98900305
Front 20-1/4" baffle angle with 19" deflector
$36 [ Add to Cart]  [ View Cart]



Baffle Support, Rear, Rainier (945/990), Cottage, Mission 98900309
Rear baffle angle with spacer. Angle is 19" long, spacer is 16" long and welded to the heel of the angle at a 106 degree angle.
$36 [ Add to Cart]  [ View Cart]

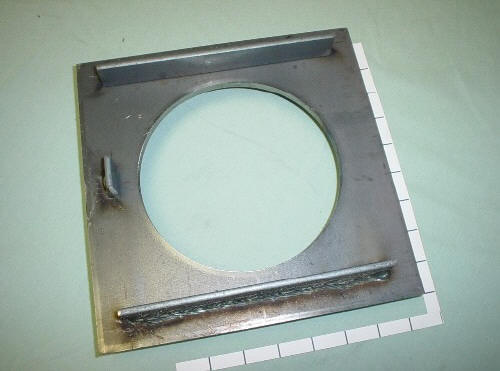

Bypass Assembly, 1196, Olympic (1190), 520-96, Liberty,Freedom, Freedom Bay 98900320
Bypass (Damper) Assembly, Square, 9" X 9" X 5/16" thick with Stiffener Bars and 5-15/16" round hole in center. (Bypass Plate Slides on this
assembly).
$36 [ Add to Cart]  [ View Cart]

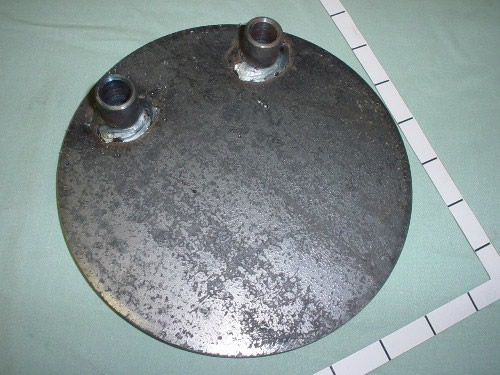

Bypass Slider Plate, Freedom, Freedom Bay, Olympic (1190)
98900338
Bypass (Damper) Sliding Plate, Round, 6-11/16" diameter with 2 sockets, off center (one axis).

$29 [ Add to Cart]  [ View Cart]

Bypass Connector Yoke, Liberty & Olympic (1190) 98900326
Bypass (Damper) Connector Rod/Yoke, 2" leg height, 5-1/4" long rod. For 1190 use 8-3/16" extension rod #98900334 (not included) and for
Liberty use 13-1/4" extention rod #98900333 (not included)
$18

Bypass Extension Rod Pull Tool, All Avalon with Sliding Damper
98900360

This is the hook tool that you use to open and close the bypass while the stove is in operation. 5/16" diameter x 8" long, with wood handle. It
can also be used to operate the scraper rod on all Avalon Pellet Stoves
$18

Ash Pan parts

Avalon Ash Pedestal Replacement Gaskets 99200126 --
Description: Gasket set for Avalon ashpan pedestals. TADPOLE & DIE CUT Includes both the die-cut gasket for the drop chute grate, and the "tadpole" type gasket that goes between the pedestal and the bottom of the stove.
$20.00  [ Add to Cart]  [ View Cart]



Misc. Generic wood stove parts and accessories

Gasket 3/4" x1/8" Self-adhesive Window Channel (white) AES301W
(Sold Per foot) --

Normally used on most other NON Travis brands as a glass gasket
Stick to glass and wrap around outer edge of Ceramic glass.

(sold per foot) $0.99 [ Add to Cart]  [ View Cart]



PRODUCT: Gasket Non-Adhesive 3/4" x 1/8" Flat Fiberglass (white)AES3418/
(sold per foot) -- $0.85

[ Add to Cart]  [ View Cart]



Speedy White Hearth and Stove Cleaner:
The only truly versatile fireplace cleaner on the market today. Due to its special cleaning capabilities and dirt-cutting formula, there’s really nothing like it out there now!
Speedy White cleans and beautifies all fireplaces and stove surfaces. This versatile product also cleans brick and stone, cloth, vinyl, carpeting and plastics. Consumers have found countless uses for Speedy White including cleaning whitewall tires, grimy plastic computer enclosures and keyboards and much more. It’s an all purpose cleaner that will make your customers return for more.

Speedy White Cleaner, 22 oz. Trigger Spray
$7.99
[ Add to Cart]  [ View Cart]
