Replacement parts for
QUEST
WP4
(The firebrick has a
Oval
hole in the back for the Drop chute)
And
QUEST PLUS
WP4 +
The firebrick has a
Rectangle Hole in the back for the
Drop chute
Be sure you order for the
model you have
Quest or Quest Plus
Whitfield Trouble Shooting
This help file will help Diagnose most Whitfield pellet stoves.
The flow charts and are for Advantage II, II-T and plus stoves.
but the basic info will help with ALL pellet stoves.
Please do not call or email us for tech
support.
Here is a link to the Manufactures
Tech form.
PELLET STOVE MODEL NUMBERS TO NAMES.
Stoves will be listed by Model #, use this as a guide.
Auger motors #12046300
120V 1RPM
WP1, WP2, WP7, WP3, WP4, WP4+, WP5, WW1, Traditions and Profile series stoves
- PRODUCT: Whitfield Auger motor #12046300 --$115.00
[Order] [Checkout]
Burn Pots/Grates
Quest burn pot grate
 #12051263
Replacement 10 bar Ultra-grate
for Quest
#12051263 -- $139.00
[Order]
Quest Plus burn pot grate
 #16050246
Replacement 13 bar Ultra-Grate (with new front deflector)
for WP5, WP7, (WP4 PLUS)
Replaces 13 and 14 bar grates for newer Quest Plus
#16050246 -- $169.00
[Order]
- Control Boards
Before you order a Control board save yourself some time and money and
be sure it is not a limit switch or the Vacuum.
Go here to find our how
to test.
-

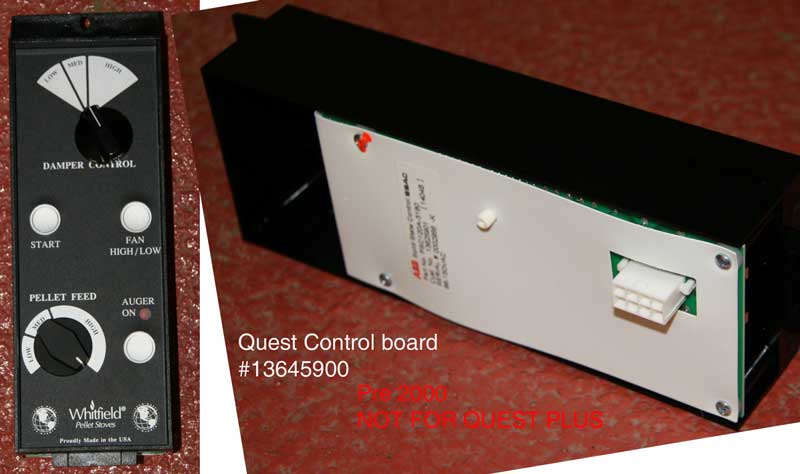

 Quest WP4 1994 through 2000
13645900 $187.00 NO LONGER AVAILABLE
- PRODUCT: Whitfield Quest WP4 Control Board --
Has Knobs for burn rate and air control
- This board is NOT for the
QUEST PLUS
see board below for the Plus
AS OF 9/10/07 This part is no longer available.
Please direct Complaints to
http://www.lennoxhearthproducts.com/support/

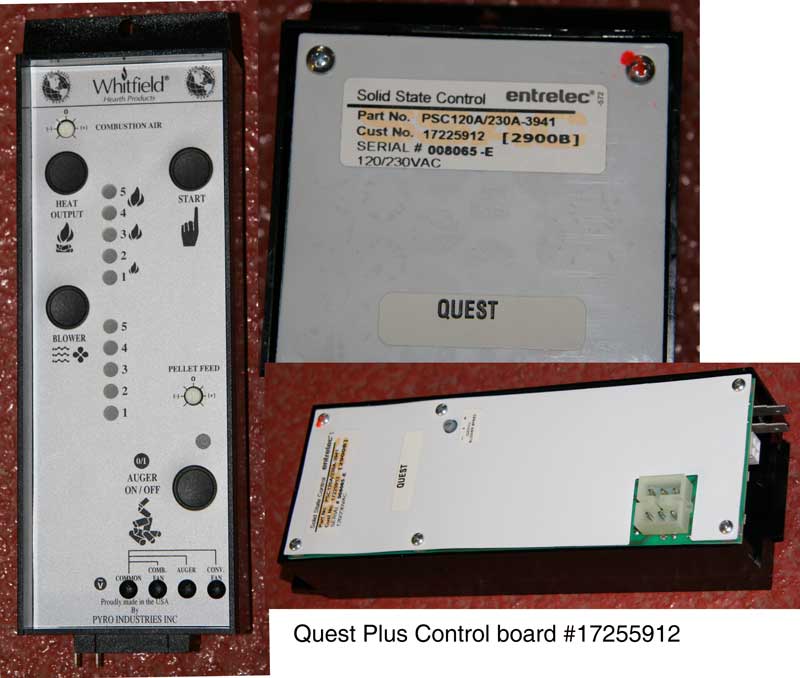

PRODUCT: Whitfield QUEST PLUS
 Touch Pad board CONTROL BOARD, WP4 PLUS ONLY / 17255912 -- $255.00
[ Add to Cart]
[ View Cart]
PRODUCT: Whitfield Replacement Igniter -- $119.00
FOR ALL Units with PreInstalled ignitors
Replacement only #12150213
(OLD part #12140213)
you can light you stove with a fire starter until your
replacement arrives
[Order]
- Combustion blowers.
- Not all models of quest use the same
blower.
All our parts are OEM from Whitfield
PRODUCT: WHITFIELD Combustion blower complete
(WP4 Quest Freestanding 1994 -2000
Oval drop shoot in firebrick)
NOT FOR QUEST PLUS--$206.00 #13746010
 [Order] [Checkout]
PRODUCT: WHITFIELD Combustion blower complete
(WP4 Quest insert 1994 -2000
Oval drop shoot in firebrick)
NOT FOR QUEST PLUS --$206.00 #13846010
[Order] [Checkout]
PRODUCT: 12050011
WP4+ Quest plus
Exhaust blower (large housing) -- $188.00
[Add to Cart]
[View Cart]
- Convection Fans (Room Air)
All our parts are OEM from
Whitfield.
-
- PRODUCT: Whitfield Convection Quest WP-4, 1994-2000
NOT FOR QUEST PLUS
#13646109 -- $160.00
[Order]
[Checkout]
-
- PRODUCT: Whitfield Convection QUEST PLUS WP4+
#12146109 -- $179.00
[Order]
[Checkout]
- Limit Switches
-
- High Limit Switch
-
-
 PRODUCT: WHITFIELD
WP4 QUEST
High limit snap switch # 13057801
BRASS STUD--
$20.00
[Order]
[Checkout]
-
-
 PRODUCT: WHITFIELD High limit snap switch photo
(250 deg DG,60T21)WP4
QUEST PLUS and 7--$19.00 #12147705
-
[Order]
-
-
- Low limit Switch
Click here for photo and trouble shooting
-
 #12057601
PRODUCT: WHITFIELD ceramic body Low limit snap switch for QUEST AND QUEST PLUS
WP4 -(F140-30)
Replaces old Plastic Bako-lite switch
Mounts on the combustion blower,
If your stove shuts off after start up in 15 minutes, this switch is most likely bad.
NOT used for Profile or Optima Series stoves.
They use a photo eye for Proof of fire.
-$42.00
[Order]
[Checkout]

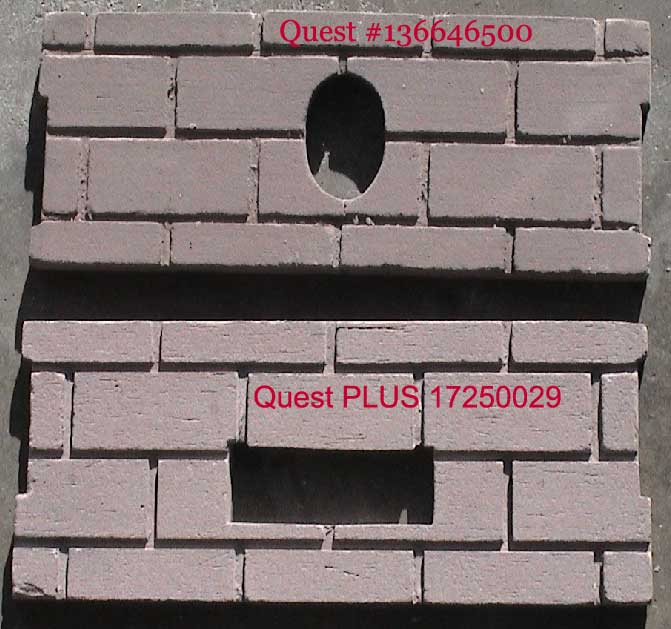

- Firebrick / Refractory
-
 Quest Firebrick #13646500 -- $103.00
(The firebrick has a
Oval
hole in the back for the Drop chute)
NOT FOR QUEST PLUS [Order]
-
-
Whitfield
Quest Plus Fire brick 17250029 -- $108.00
(The firebrick has a
Rectangle Hole in the back for the
Drop chute)
[ Add to Cart]
[ View Cart]
