Replacement parts for
ADVANTAGE
WP2 and ADVANTAGE PLUS WP7
Some parts will only fits stoves advantage models specified.
Whitfield/Lennox has made several models of stoves,
it is very important that you order the correct part for YOUR model and year of
stove. If you want to see a complete list of Whitfield stoves
click here
Advantage II
Pellet, Freestanding & Insert, WP2
MODEL YEARS: 1989 - 1990 (Serial # 7401 - 18144)
Advantage II-T & III
Pellet, Freestanding & Insert, WP2
ADVANTAGE II-T MODEL YEARS: 1990 - 2000 (Serial # 18145 & up)
ADVANTAGE III MODEL YEARS: 1991 - 1996 (Serial # 18145 & up)
Whitfield Trouble Shooting
This help file will help Diagnose most Whitfield pellet stoves.
The flow charts and are for Advantage II, II-T and plus stoves.
but the basic info will help with ALL pellet stoves.
Please do not call or email us for tech
support.
Here is a link to the Manufactures
Tech form.
PELLET STOVE MODEL NUMBERS TO NAMES.
Stoves will be listed by Model #, use this as a guide.

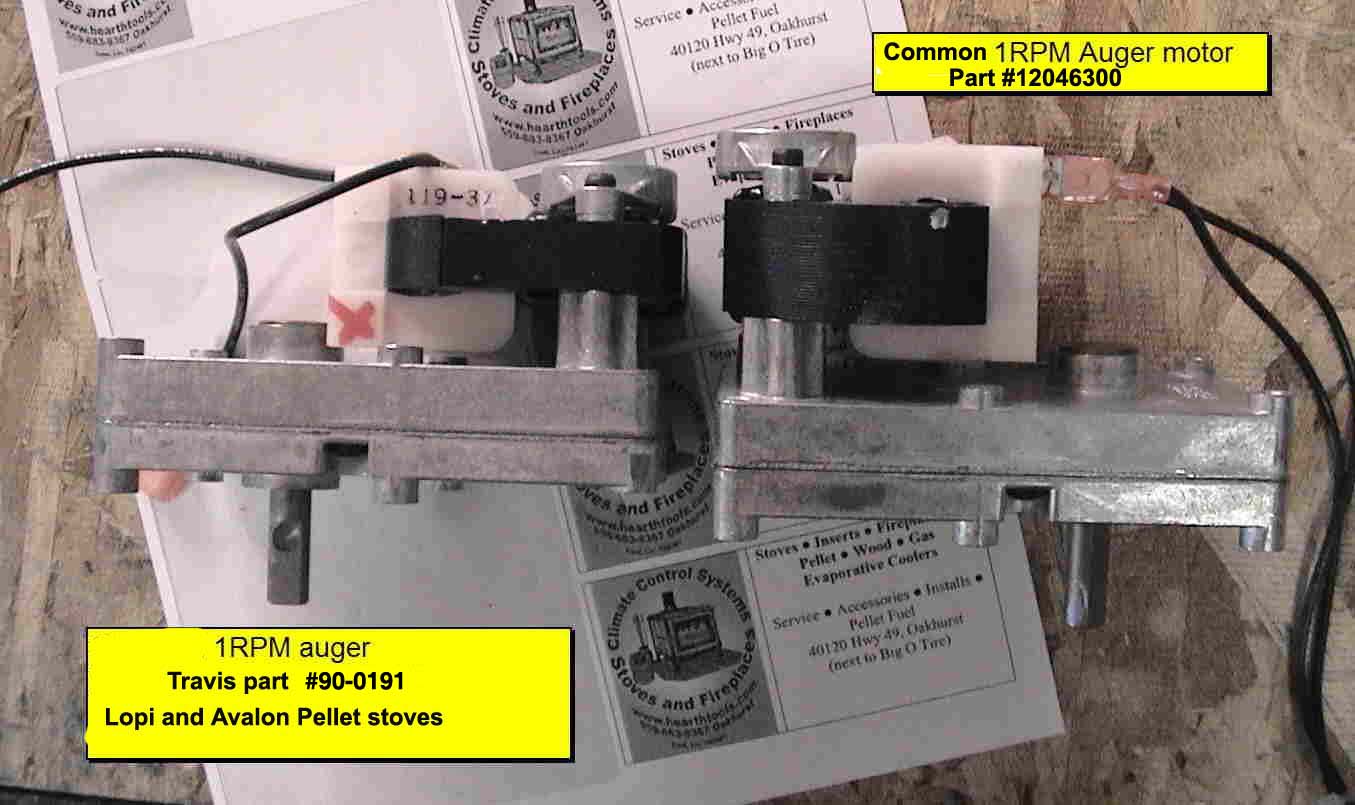

Auger motors #12046300
120V 1RPM
WP1, WP2, WP7, WP3, WP4, WP4+, WP5, WW1, Traditions and Profile series stoves
- PRODUCT: Whitfield Auger motor #12046300 --$115.00
[Order] [Checkout]
Burn Pots/Grates
Some Advantage II-T III had 13 or 14 bar grates they are
the same size.
and newer Advantage II-T, III and the advantage PLUS have 10 bar grates
 #16050246
Replacement 13 bar Ultra-Grate (with new front deflector)
for WP5, WP7, (WP4 PLUS)
Replaces 13 and 14 bar grates for Advantage II-T III
and newer Quest Plus
#16050246 -- $169.00
[Order]

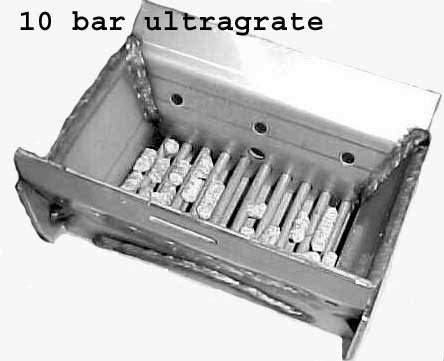

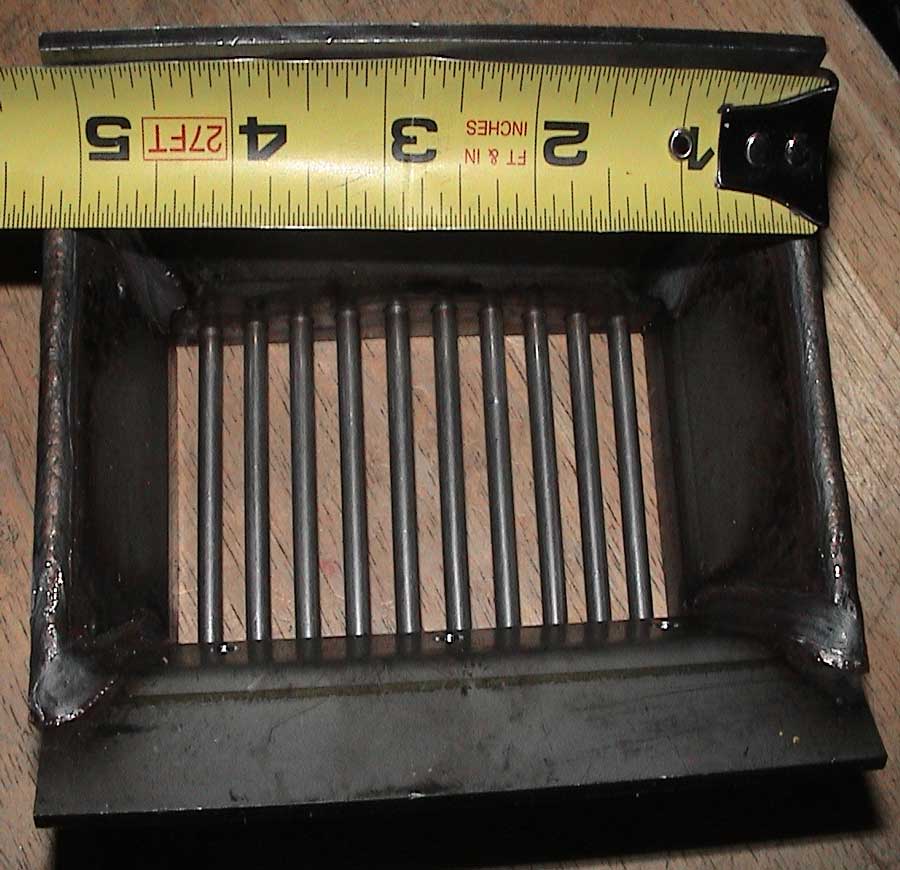

 Replacement 10 bar Ultra-grate
for WP4, T300P, Profile and
WP2 Advantage II-T, II -TC and
Advantage III's.
Same Grate used in the Ultra-Grate Update kit.
#12051263 -- $139.00 PHOTO
[Order]
 Ultra Grate Burn pot upgrade #12151264
more info and PHOTO
(Big improvement for older advantage WP2
II's and lll's
Includes new base plate and 10 bar ultra grate pot.
Advantage II, II-T and III series Stoves only. WP2,
use with serial
#7217 and up
This kit helps the pellets burn better, reduces clinkering and the ashes drop into the ashtray . This also cures the problems with non air tight ash drawers because it draws the air from the ash draw instead of the burn pot holder with tube.
Whitfield Advantage Series ultra grate retrofit kit-#12151264-
$149.00 [Order]
 #12150700
No longer in production
Original Drop in Grate with small holes for
older
Advantage I and II (WP2) Serial # 7217 THROUGH 43377
(as of 9/06 Lennox is no longer producing this grate)
You will need to upgrade to the
ultra Grate Upgrade kit #12151264 listed above

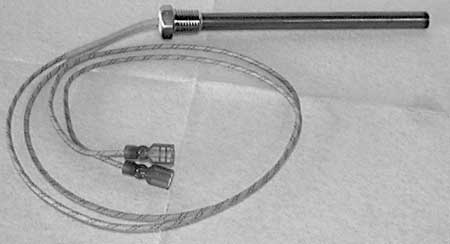

 PRODUCT: Whitfield Replacement Igniter
Rod-- $119.00
FOR ALL Units with Pre Installed igniters
This is the Only Igniter Lennox Makes for all Whitfield/Lennox pellet stoves.
Replacement only #12150213
(OLD part #12140213)
you can light you stove with a fire starter until your
replacement arrives
[Order]
- Control Boards
Before you order a Control board save yourself some time and money and
be sure it is not a limit switch or the Vacuum.
Go here to find our how
to test.
-
-
-
 Whitfield control board WP2 / WP7 #12055902
Touch pad control board- replaces old
GREY FACED
rotary Knob type board
- Advantage, II-T's, WP2 1990-2000 ser#18145 and up
-
Advantage III's WP2 1991-1996 Ser #18145 and up
- Advantage Plus WP7 1990 -2000
IF YOU HAVE THE BLACK
FACED BOARD USE NEXT PART #25250801
LISTED BELOW
Please Download the
Wire diagram for
Advantage Series stoves with Touch pad control board.
BEFORE INSTALLING Please Read Comments at the bottom of the Diagram!
Wire
diagrams
(large 3mg file has hand written notes)
Includes Pressure reading and auger times for most Whitfield stoves.
--$285.00 [Order]

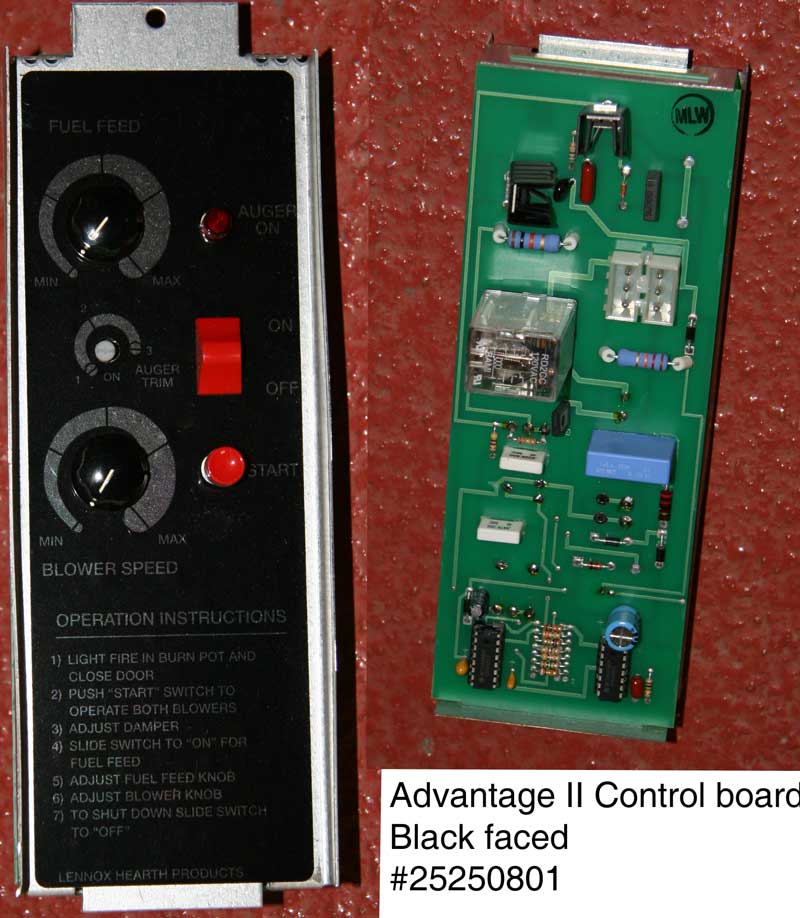

 BLACK FACED RK
rotary Knob type board control board #25250801
Advantage II wp2 1989-1990 ser#7401 -18144 - If you have a gray faced
board order
#12055902 above
- PRODUCT: Whitfield Advantage II wp2 Black faced RK Rotory KNOB --
LIMITED quantities from Lennox,$520.00
[ Add to Cart]
[ View Cart]
- Combustion Fans
All our parts are OEM from Whitfield.
-
-
 PRODUCT: Advantage series WHITFIELD Combustion blower #12156009
Complete with
Motor, housing, limit switch and vacuum port. photo
WP1,WP2,WP7,--$199.00 #12156009
(small housing Not for Profile or Quest Plus)
[Order]
[Checkout
-
-

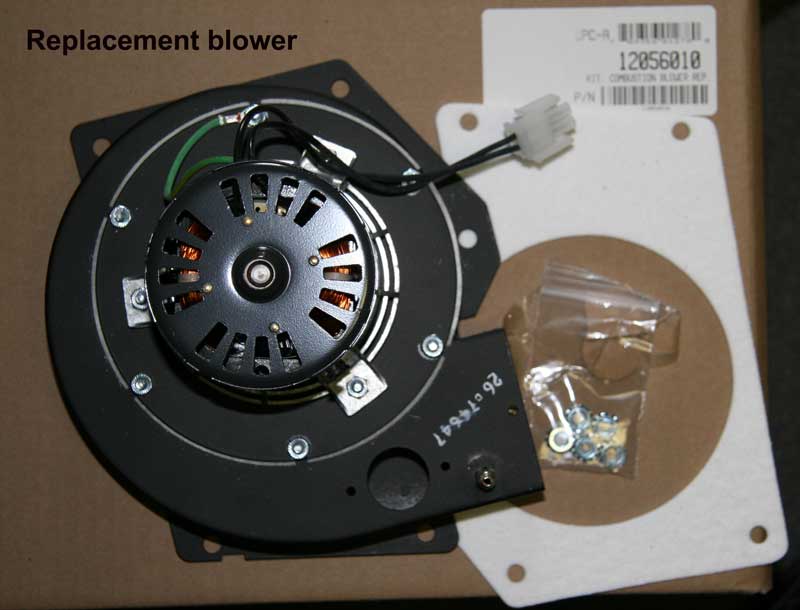

 PRODUCT: Advantage series Whitfield Combustion Motor and housing only
#12056010
(No limit switch or Flue adapt)
(small housing Not for Profile or Quest Plus )
WP1,WP2,WP7,--$179.00 #12056010
[Order]
[Checkout]
-
 Convection Fans (Room Air)
All our parts are OEM from
Whitfield.
-

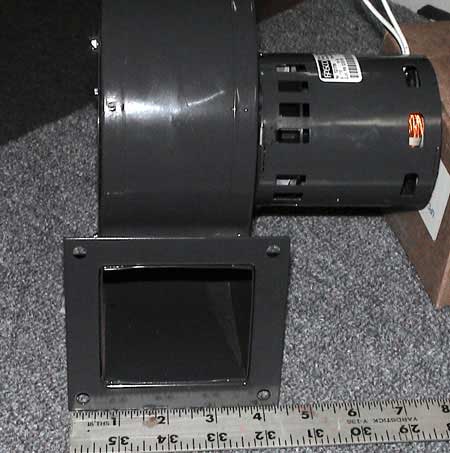

- PRODUCT: Whitfield Convection blower #12146109
WP-1, 2, 3*, 7 AND WW1* WP4+
#12146109 -- $179.00 (WP3 ser#1001-2281) (WW1 ser
#1001-3607)
[Order]
[Checkout]
More info on blower
- Limit Switches
-
- High Limit Switch
-
PRODUCT: WHITFIELD High limit snap switch
(250 deg DG,60T21)WP-2 ,4+(quest plus) and 7--$19.00 #12147705
This switch will shut down the stove if you stove overheats.
-
[Order]
- Low limit Switch
Click here for photo and trouble shooting
 PRODUCT:
WHITFIELD ceramic body Low limit snap switch WP-1,2,7 and 4--
#12057601(F140-30) Replaces old Bako-lite Plastic switch
Mounts on the combustion blower,
If your stove shuts off after start up in 15 minutes, this switch is most likely bad.
$42.00
NOT used for Profile or Optima Series stoves.
They use a photo eye for Proof of fire.
[Order] [Checkout]
- Firebrick /
Refractory
-
-
-
 Brick pattern firebrick set #12146500 -- $110.00
(The firebrick has a
Oval
hole in the back for the Drop chute)
-
-
- Advantage II-T WP-2
1990-2000Ser #18145 and up
Advantage III 1991-1996 Ser # 18145 and up
- Advantage II-T Classic 2002 - 2006 (Serial # 75864 & up)
- Can also be used on Advantage II (replaces no brick
pattern)
1989-1990 [Order]
|
-
- Advantage PLUS

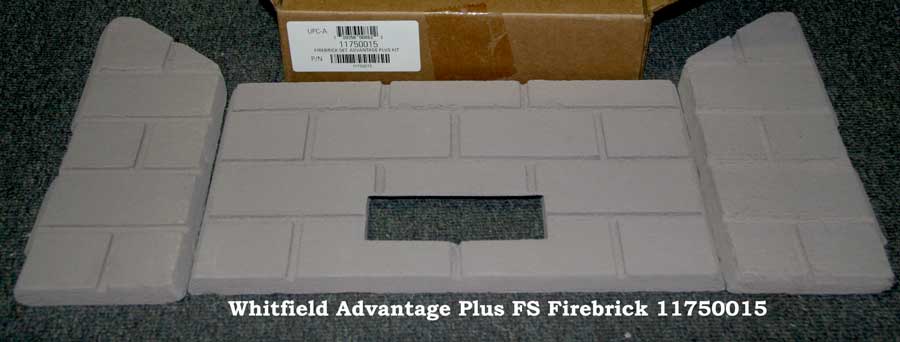

 PRODUCT: Whitfield Advantage Plus FS Firebrick kit 3 parts --
(The firebrick has a
Rectangle hole in the back for the
Drop chute)
one piece bay window glass model WP-7
1996-2000
Advantage Plus Inserts:
Lennox no longer sells JUST the back panel #11750013. You
will need to by the 3 piece kit.
[ Add to Cart] #11750015 $108.00
Heat exchange Baffle
PRODUCT: 12141920 Whitfield Advantage II KIT,BAFFLE,WP2,1994 --
Tall metal Ash trap Baffle Located Behind Firebrick.
$63.00
[ Add to Cart]
[ View Cart]
PRODUCT: Whitfield Advantage Plus (WP-7)
Heat exchange Baffle
#11750031 -- $30.00
Metal plate inside firebox under heat tubes that is held in by two 1/4"
head screws.
[Order]
[Checkout]
Glass
PRODUCT: 12146402 Advantage III and Plus Door Glass Kit
One Piece wrap around glass.
(Includes Gasket) -- $470.00
[ Add to Cart]
[ View Cart]
